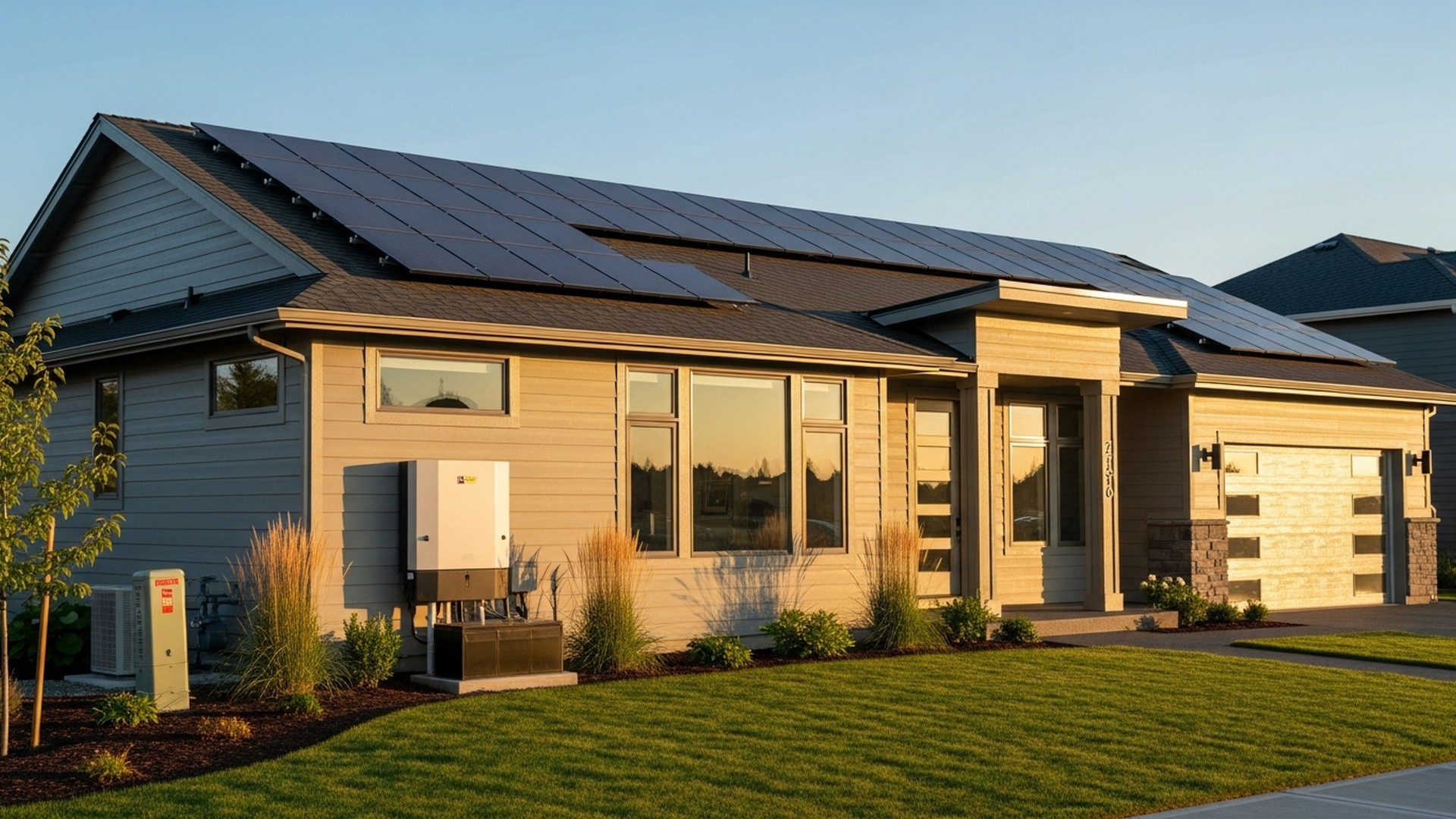

Net Zero Home Tour: 2000 Sq Ft Family Home

This net zero home tour walks through a 2,000 sq ft family home built to produce as much annual energy as it uses — with design moves, envelope assemblies, systems specs, and DIY-friendly cost choices that readers can copy on a budget. The net zero home tour shows exact stats (2,000 sq ft conditioned area, three bedrooms, two bathrooms, temperate-cold climate zone) and performance KPIs so builders can compare to an average U.S. home (~10,000–11,000 kWh/yr). Read on to see layout decisions, insulation assemblies, HVAC and renewables sizing, and practical steps a motivated DIYer can take.

TL;DR:

• This 2,000 sq ft net zero home uses ~4,200 kWh/yr (site) with a 7.5 kW PV array and a 14 kWh battery bank, yielding roughly zero annual grid energy; airtightness measured 0.6 ACH50.
• Prioritize continuous exterior insulation (R-20+ wall equivalency), triple-pane south glazing with SHGC tuned to orientation, ERV ventilation, and an air-source heat pump; these reduce loads by 50–70% versus a typical code-built house.
• Budget strategy: spend more on the envelope and right-size PV; do framing, insulation prep, and finish work as DIY tasks, but hire certified electricians and HVAC pros for system commissioning.

Net Zero Home Tour: Quick Overview of the 2000 Sq Ft Family Home

At-a-glance Specs (size, Layout, Location)

• Conditioned floor area: 2,000 sq ft
• Bedrooms / bathrooms: 3 bed / 2 bath (open-plan living)
• Climate zone: Cold-temperate (IECC Climate Zone 5) — similar decisions apply across many temperate zones with adjustments to R-values and SHGC
• Site: Semi-rural lot with south-facing roof pitch and modest shading

Performance Highlights (annual Energy, HERS or Equivalent)

• Estimated annual site energy: ~4,200 kWh/year (owner-measured; includes HVAC, hot water, appliances)
• Net energy balance: ~0 kWh net (7,500 kWh produced, 7,500 kWh consumed accounting for exports/imports and load shifting)
• Airtightness: 0.6 ACH50 (blower-door test) — Passive House targets are 0.6 ACH50 and this house meets that benchmark
• HERS score: ~35 (if measured; far below typical U.S. new home of ~60–100). For context, an average U.S. home uses ~10,000–11,000 kWh/yr, so this build reduces energy use by roughly 55–60%.

Clarifying terms: For readers deciding whether to pursue full onsite net zero or a phased path, see the difference between net zero and net zero ready. The NIST net-zero framework recommends site selection, passive design, and integrated renewables as the most effective route to consistent performance; that report is useful when planning a build or retrofit (Strategies to achieve net-zero energy homes).

Design and Floorplan on the Net Zero Home Tour: 2000 Sq Ft Family Home

Room-by-room Layout and Passive Design Moves

This house uses a compact rectangle footprint (roughly 40' x 50') with an open-plan living/kitchen/dining area on the south side and bedrooms on the north side to create simple thermal zoning. Rooms are arranged to reduce long exterior walls and maximize shared interior walls; that cuts heat loss and reduces the glazing area required for daylight.

Sketch / photo guidance to show on a tour:

• Floorplan overlay with measured room sizes and window locations.
• Cutaway showing wall assembly layers and insulation thickness.
• Thermal zoning diagram: south living zone with large daytime occupancy; north bedrooms with smaller glazing and more insulation.

Passive strategies used:

• South-facing glazing concentrated in living areas for winter solar gain with overhangs sized to block high summer sun (overhang depth calculated from latitude and window head height).
• Glazing-to-floor-area ratio kept moderate (~12–15%) to balance daylighting and heat loss.
• Interior layout encourages one primary living zone for daytime heating, while bedrooms are grouped and insulated to remain thermally stable.

This design follows many Passive House ideas without strict certification; for a direct comparison see the net zero vs passive house comparison and applying passive-house principles for scaling those techniques to family homes.

Orientation, Glazing Strategy, and Daylighting

Orientation is fundamental: the roof and main glazing face within ±15° of true south. The house uses a mix of fixed low-e triple-pane windows on the south and higher-insulating smaller openings on east/west to limit morning and late-afternoon heat gain. Daylighting goals aim for 300–500 lux in living areas during useful hours, achieved with clerestory windows and interior light shelves.

Design note: clerestories on the south wall add daylight deep into the plan without increasing thermal losses at eye level. Use external shading (overhangs) sized using simple sun-angle tables for your latitude; the NIST guide cited earlier has practical siting and daylighting recommendations (Strategies to achieve net-zero energy homes).

Envelope and Thermal Performance Featured in the Net Zero Home Tour

Wall, Roof, and Foundation Assembly Details

Common assemblies used on this project:

• Walls: Double-stud 2x6 interior cavity filled with dense-packed cellulose (R-21) plus 2" continuous exterior polyiso or mineral wool board for continuous insulation (CI) to achieve a whole-wall R≈30–40 depending on materials. Use taped ZIP or fluid-applied WRB as the air barrier. See why CI helps in our article on why continuous insulation matters and practical steps in the exterior insulation installation guide.
• Roof: Raised-heel trusses with R-60 blown cellulose/rock wool and 4" exterior insulation in cold climates for cold roof performance and to avoid condensation risk.
• Foundation: Insulated slab edge or basement walls with XPS or EPS to at least R-10 continuous around the slab perimeter; in well-insulated homes the slab acts as thermal mass when coupled with passive solar.

Why continuous insulation matters Continuous insulation reduces thermal bridging at studs and framing members, improving whole-wall U-factor and reducing heating load. For a detailed tradeoff between insulation strategies (cost, carbon, and performance), see the spray foam vs cellulose comparison.

Insulation R-values, Continuous Insulation, and Airtightness Targets

Target R-values used in this build (IECC/Passive House-informed):

• Walls: Effective whole-wall R ≈ 30–40 (exterior CI + cavity)
• Roof/ceiling: R-60 (cold-temperate)
• Floor over unconditioned space: R-30
• Foundation: R-10 continuous around slab edge or R-15+ for basement walls

Airtightness target: 0.6 ACH50 (Passive House) was achieved with taped sheathing, gaskets at rough openings, and attention to service penetrations. Methods used:

• Detailed air-sealing plan with sequences (tape WRB, gasket plates under windows, sealed rim-joist with spray or caulk and foam)
• Continuous air barrier verified with mid-construction blower-door tests and remedial sealing as needed

Tradeoffs: Exterior insulation and higher R-values increase upfront cost but cut annual heating loads substantially. RMI and other groups suggest prioritizing envelope measures with the best long-term return for net-zero projects; for programmatic best practices see RMI's guidance on near-zero approaches (Best practices for achieving zero over time).

Windows, Doors, and Daylighting on the Net Zero Home Tour: Glazing Choices for a 2000 Sq Ft Home

Window Specs: Frame, U-factor, SHGC and Placement

Window strategy on this build:

• South-facing windows: Triple-pane, low-e coating with mid-range SHGC (~0.45) to admit winter solar gain. U-factor target ~0.18–0.20.
• East/West windows: Smaller openings, low SHGC (~0.25–0.30), triple-pane in cold climates.
• North windows: Minimal glazing, low U-factor (~0.20–0.25) primarily for daylight without heat loss.

Frame choices used: fiberglass and thermally-broken aluminum on large units for slim sightlines, wood-clad frames for operable windows. Installation best practices emphasize watertight flashings, sill pans, and an airtight jamb detail with backer rod and sealant. For detailed window selection and passive-house installation methods, consult the guide on choosing passive-house windows.

Triple-pane vs double-pane tradeoffs

• Triple-pane: Higher first cost (20–60% more than double-pane), significantly better thermal performance in cold climates, reduces heating load and improves comfort. See the cost-benefit breakouts in are triple-pane windows worth it.
• Double-pane with low-e and warm-edge spacers: Lower upfront cost; may be acceptable in milder climates when coupled with high CI and airtightness.

Door Details and Air-sealing at Openings

Use insulated exterior doors with thermal break cores for minimal heat transfer. Key air-sealing details:

• Install door thresholds with continuous gasket and sill pan.
• Use multi-point hardware for tight compression on insulated doors.
• Protect large sliding doors with fixed overhangs or shading; consider plug-and-play insulated storm doors if budget constrained.

BillionBricks' maintenance guidance includes tips for keeping high-performance glazing and seals performing over time, which is useful for owners and DIY maintainers (A newbie's guide to maintaining a net-zero home).

Mechanical Systems Tour: Heating, Cooling, Ventilation, and Hot Water in the 2000 Sq Ft Net Zero Family Home

Primary Heating and Cooling (heat Pump Choices)

This home uses a ducted air-source heat pump with zoned controls and one ductless mini-split in a south-facing sunroom. Rationale: ducted units allow centralized, quieter distribution for family homes; mini-splits add targeted cooling/heating for bonus spaces.

Typical specs:

• Heat pump efficiency: Cold-climate air-source heat pump with HSPF2 ≈ 10–12 and SEER2 ≈ 18–22. Seasonal COP in heating mode varies with outdoor temp; expect COP 2.5–3.5 in heating-dominant months.
• Capacity sizing: Manual-J reduced by 50–70% from a code-built house thanks to the tight, well-insulated envelope. This house uses ~18,000 Btu (1.5–2 ton) nominal system sized for low design load rather than oversized default.

Ventilation Strategy: ERV/HRV and Filtration

Balanced ventilation uses an ERV (energy recovery ventilator) sized for 0.35 ACH continuous ventilation for a family of four, with MERV 13 filters on the incoming air and a service-accessible filter cabinet. Advantages:

• Heat or enthalpy recovery reduces ventilation heating/cooling loads.
• Filtration improves indoor air quality; add a portable HEPA in high-use areas if needed.

Efficiency Vermont recommends prioritizing heat-pump HVAC and quality ventilation to achieve net-zero outcomes; their guidance provides hands-on tips for installers and homeowners (How to make your home net zero | Efficiency Vermont).

DIY maintenance tips:

• Clean or replace ERV filters quarterly.
• Check drain pans and condensate lines for clear flow.
• Keep outdoor heat-pump coils free of debris and snow.

Hot Water Systems and Distribution

Hot water approach: Heat pump water heater (HPWH) in a conditioned mechanical closet with 80–120 gallon storage (for families that prefer bulk heating) or a 50–80 gallon HPWH where space/budget is tighter. Alternatives used on other similar builds:

• Solar thermal for supplemental heating (paired with HPWH).
• On-demand gas is less common for net-zero-electric goals.

Distribution losses are reduced by:

• Insulating hot-water lines (at least R-3) and minimizing run lengths.
• Using point-of-use loops only where necessary; prefer demand-controlled recirculation to avoid constant waste.

For filtration and ventilation cross-links, see the internal guidance on HEPA filtration in ventilation and passive house scaling in earlier sections.

Renewables and Electrical Systems on the Net Zero Home Tour: PV, Batteries, Inverters, and Sizing

This section includes a short video walk-through showing array placement, inverter/battery cabinet, and monitoring readouts. Viewers will see live production numbers and how backup circuits are arranged.

Watch this step-by-step guide on sizing a solar system for your house! examples and calculations:

Solar PV System: Capacity, Panel Type, and Roof Integration

This house installs a 7.5 kW DC rooftop array using 60-cell monocrystalline panels with a 20–22° roof pitch oriented within 10° of south. Details:

• Installed size: 7.5 kW DC
• Expected annual production: ~9,500–10,500 kWh/yr (site production varies by location and tilt; modeled for the temperate site) — modeled with PVSyst/HelioScope assumptions. For guidance on panel selection and roof matching, see choose solar panels to match your roof.
• Inverter type: Hybrid string inverter (allows battery charging and grid export) with rapid shutdown and monitoring.

Linking to a technical primer on off-grid and hybrid designs: designing off-grid solar systems.

Battery Storage and Inverter Configuration

Battery specifications used:

• Battery capacity: 14 kWh usable (LiFePO4 chemistry) — sized for 12–24 hours of typical evening loads in a low-energy home, not for long-duration off-grid.
• Round-trip efficiency: ~90–95% for modern LiFePO4 systems.
• Inverter: Hybrid inverter with backfeed-limited export (grid-tied with backup functionality). The inverter allows whole-house backup for critical loads for several hours.

For DIY battery storage construction and safe enclosures, see the site’s DIY battery enclosure instructions. For technical connection workflows, consult connecting panels to a hybrid inverter.

Comparison/specs Table: Expected Production vs Household Load

GreenBuildingAdvisor provides practical sizing tips and a roadmap for balancing PV and battery with household loads (A Roadmap for Getting to Net-Zero).

Maintenance and hybrid inverter checklist:

• Monitor inverter logs monthly.
• Check battery state-of-charge and cycles using manufacturer app.
• Inspect PV modules visually annually and clean if >5% soiling.
• Have an electrician re-torque DC connections every 3–5 years.

Water, Waste, and Off-grid Systems Showcased in the Net Zero Home Tour

Water Supply and Filtration (well vs Municipal)

This house uses municipal water with a captured-rainwater secondary system for irrigation. If using a well, whole-house filtration and UV or particulate treatment are common to match potable standards. For off-grid filtration options and whole-house strategies, consult off-grid water filtration options.

Key plumbing choices:

• Low-flow fixtures: 1.8 gpf toilets, 1.5 gpm showerheads, and 1.2 gpm faucets reduce hot water demand and shrink the HPWH and PV sizing needs.
• Drain-water heat recovery: A drain-water heat recovery unit on the shower can recover 30–40% of the heat in shower wastewater, reducing hot-water energy use.
• Rainwater capture: 2,000–3,000 gallon cistern for irrigation, with first-flush diverter and sediment prefilter.

Pump and storage sizing:

• Irrigation pump: 0.5–1.5 HP submersible or pressure booster depending on elevation and demands.
• Household storage: For modest off-grid uses, 1–3 days of potable storage (500–2,000 gallons) may be required; municipal connections usually have much smaller needs.

Rainwater, Greywater, and Wastewater Solutions

Greywater reuse: laundry-to-landscape and bathroom greywater diversion systems can supply irrigation without potable treatment. Septic vs advanced treatment: many rural sites use septic; advanced treatment (ATU) systems enable higher effluent quality and sometimes greywater reuse for irrigation. Check local code and permitting before installing any on-site wastewater system.

Estimated water savings and typical tank sizes:

• Low-flow upgrades can reduce household water use by 30–50%.
• Rainwater cistern sized to local precipitation – 2,000 gallons typically supports summer irrigation for modest landscaping in temperate climates.

Permits: Always check municipal or county codes for rainwater capture, greywater reuse, and septic or ATU installations; regulations vary widely.

Costs, Payback, and Budget Strategies From the Net Zero Home Tour: What a 2000 Sq Ft Family Can Expect

Upfront Costs vs Long-term Savings — Realistic Numbers

Example cost ranges for a DIY-involved net-zero project (U.S., temperate-cold climate). These are conservative ranges that vary by region and labor input.

• Site prep & foundation: $30k–$60k
• Framing and envelope (including CI and high-performance windows): $60k–$120k
• HVAC & ventilation (heat pump, ERV): $12k–$30k
• PV + inverter (7.5 kW) and battery (14 kWh): $18k–$35k after typical incentives (varies by state)
• Interior finishes, plumbing, electrical, permits: $60k–$120k

Total build with significant DIY input: roughly $180k–$350k depending on finishes, contractor use, and local labor. Energy bill savings: with a house using ~4,200 kWh/yr and relying primarily on its own PV, expect electric bills under $200–$500/yr depending on grid charges and net-metering rules — translating to multi-decade payback on systems alone unless regional incentives apply.

Simple ROI math example:

• Annual electric cost avoided: $600 (varies)
• Federal tax credit or state incentives can reduce PV/battery costs by 10–30% depending on program.
• Payback on PV when combined with avoided purchases and incentives is often 8–15 years in many markets.

For practical tactics to lower upfront costs see the internal guide on budget-saving strategies for net zero. Also use the equipment selection guidance in the article on energy-efficient appliance choices to cut loads and improve payback.

Budget-friendly Tradeoffs and DIY Opportunities

Where to spend:

• Spend more on: continuous exterior insulation, high-performance windows (or good window installation), airtightness detailing, heat-pump HVAC, and a good ERV/HRV.
• Save on: interior finishes, some mechanical finish work (allow for professional commissioning), and modular cabinetry if willing to build in phases.

DIY vs pro tasks:

• Good DIY tasks: framing assistance, insulating (dense-pack cellulose with pro training), interior drywall, painting, landscaping, and non-service electrical (e.g., low-voltage).
• Hire pros for: main electrical service and PV interconnection, HVAC refrigerant work and commissioning, complex foundation or structural framing beyond typical DIY skills, and plumbing tied to municipal service.

If budget is tight, phase PV installation after occupancy once measured loads are confirmed; that often yields smarter sizing and better return on investment.

Key Components at a Glance: Quick Specs and KPIs for the Net Zero Home Tour — 2000 Sq Ft Family Home

One-page Spec Sheet

Must-do Upgrades for DIY Builders

• Continuous exterior insulation: Reduce thermal bridges and lower heating loads — see why continuous insulation matters.
• High-performance windows with correct installation: Prioritize correct flashing and airtight jambs — see choosing passive-house windows.
• Airtightness plan and blower-door testing: Test mid-build and fix leaks.
• Heat-pump HVAC and ERV: Replace fossil systems with electric heat pumps sized to the reduced load.
• Appropriately sized PV array with battery-ready inverter: Avoid oversizing early; model with measured loads and consult installers; see designing off-grid solar systems.
• Appliance and lighting upgrades: Choose ENERGY STAR appliances and LED lighting to reduce loads — see energy-efficient appliance choices.

The Bottom Line: Final Takeaways From the Net Zero Home Tour — 2000 Sq Ft Family Home

This net zero home tour shows that getting to net zero on a 2,000 sq ft family house is practical when the design prioritizes envelope performance, airtightness, and right-sized systems. Model energy use first, invest in CI and windows, then size PV and batteries to measured needs; consult with licensed pros for electrical and HVAC commissioning.
