How Much Energy Will a 3KW Solar System Produce for a Workshop?

The basic PV math is straightforward: System size (kW) × Peak Sun Hours (PSH) = expected daily energy (kWh) before losses. For a 3 kW array: - 3 kW × 3 PSH ≈ 9 kWh/day (low-sun location) - 3 kW × 4 PSH ≈ 12 kWh/day (average) - 3 kW × 5 PSH ≈ 15 kWh/day (high-sun location) These are raw figures. Real-world yield is lower after derating. Typical derate factors include inverter efficiency (95–98%), module temperature losses, soiling, wiring losses, and shading. A practical combined derate is often 10–20%. For example, 12 kWh/day raw minus 15% derate → ~10.2 kWh/day usable. Seasonal and geographic variation matters. Use PVWatts/NREL or local insolation maps to model site-specific output. The U.S. Department of Energy's Homeowner's guide to solar offers guidance on ideal roof slope and orientation and links to modeling tools; check those before final sizing.

Battery and Storage Options: Do You Need Batteries for a Workshop?

Short answer: not always. Batteries make sense when you need backup power at night, plan off-grid use, or want to smooth peaks and capture surplus solar. - You need nighttime lighting or tools when the grid is down. - You run large motors that exceed inverter continuous rating during key hours. - You want to run off-grid during weekends or remote jobs. Sizing battery capacity: - Start with required daily kWh. Example: nightly workshop use 8 kWh. - Divide by usable depth-of-discharge (DoD). For lead-acid usable DoD ~50%; for LiFePO4 usable DoD ~80–90%. - Account for round-trip efficiency: multiply required kWh by 1 / round-trip efficiency (e.g., 0.9 for LiFePO4, 0.8 for lead-acid).

How long will a 3 kW system run a table saw?

Runtime depends on the table saw's wattage and duty cycle. A 2,000 W saw running continuously uses 2 kW, so a 3 kW array producing 12 kWh/day could power it for about 6 hours across the day if the sun provides that energy. However, startup currents for motors are much higher; a saw that draws 6 kW at startup will need an inverter with sufficient surge capacity or a soft-start/VFD. For accurate planning, measure the saw's running and startup draw with a clamp meter or Kill A Watt and coordinate starts to avoid simultaneous heavy loads.

How many panels do I need for a 3 kW array?

Panel count depends on module wattage. Rough examples: eight 375–400 W panels (8 × 375 W ≈ 3,000 W) or ten 300 W panels. Choose panel size based on roof area and tilt. Use the module watt rating and available roof space to pick the right mix, and verify string voltage and inverter MPPT ranges when finalizing layout.

Do I need batteries for a workshop solar system?

Not always. If your goal is daytime tool use and you stay grid-connected, batteries aren't required. Add batteries for backup during outages, for night use, or to smooth peaks and reduce grid draw. Battery sizing should be based on nightly kWh needs, usable depth-of-discharge, and round-trip efficiency. Small 1–5 kWh batteries work for basic backup; off-grid setups typically need 10–20 kWh or more depending on autonomy requirements.

How do I size an inverter for motors and compressors?

Check both continuous and peak/surge ratings on the inverter. Motors have high inrush current—often 3–6× running amps. Either choose an inverter with a high surge rating (for short starts) or use soft-starts/VFDs that limit startup current. For systems with batteries, a hybrid inverter with strong inverter surge capability is preferable. Always verify manufacturer startup limits and test with measured motor loads.

What permits and codes apply to a small workshop solar install?

Most areas require building and electrical permits for PV systems. NEC requirements include rapid shutdown, proper disconnects, labeling, grounding, and conductor sizing. Local authorities may have additional rules on racking, roof penetrations, and inspections. Start with your local building department, prepare one-line diagrams and equipment spec sheets, and plan for inspection and utility interconnection paperwork.

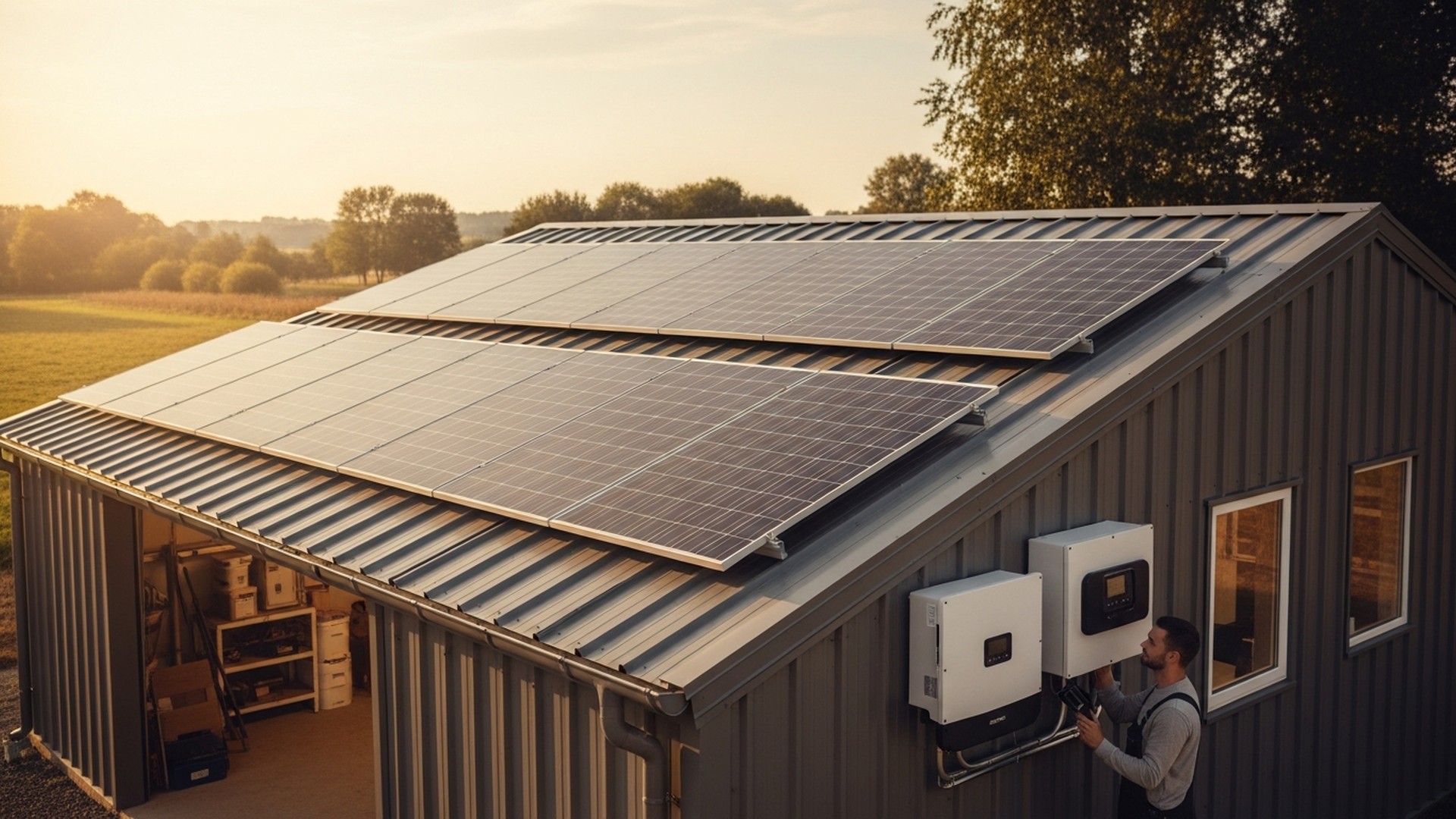

3KW Solar System for Workshop: Complete Sizing Guide

Solar System Sizing

Step-by-step guide to sizing a 3kW solar system for a workshop: production, panel and inverter specs, batteries, wiring, costs, and sample builds.

By Graham Mann | Published: 6/12/2026

3KW Solar System for Workshop: Complete Sizing Guide A 3kw solar system for workshop use is a practical, affordable starting point for powering daytime tools, lights, and small compressors without a large roof or budget. This guide explains how much a 3 kW array typically produces, how to match that output to common shop loads, what panels and inverters to choose, when batteries are needed, wiring and permitting essentials, and three sample builds you can copy. Read on to learn step-by-step calculations, equipment options, and real-world trade-offs so you can size a system that fits your workshop and wallet. TL;DR: - A 3 kW array typically yields about 9–15 kWh/day depending on location (3 kW × peak sun hours), enough for daytime tool use and lighting in many small workshops. - For tools with high startup currents (table saws, compressors), choose an inverter with adequate surge rating and plan batteries or staged starts; a hybrid inverter eases backup and storage. - Typical builds: gr...
