Can a 5kW system run power tools?

Yes. A 5 kW inverter provides enough instantaneous power for most hand-held and stationary shop tools (table saws, compressors) as long as total simultaneous demand stays under the inverter's continuous rating. Runtime depends on available daily kWh from the array and batteries; heavy tool use for several hours may require battery support or staging tool runs to stay within energy limits.

How many panels does 5kW need?

Panel count depends on individual module wattage. Typical mid‑range modules (370–400 W) need about 13 panels for roughly 5 kW. Lower-wattage panels (325 W) require about 15–16 panels. Always check module area and roof space: 13 panels at ~1.7 m² each take ~22 m² (≈236 ft²).

Do I need batteries for a shed solar system?

Batteries are optional. For daytime-only use and grid-tied systems, you can often go without batteries. For backup, off-grid operation, or to run loads when grid power is off, batteries are necessary. Size batteries by dividing your daily kWh need by usable DoD (for example, 15 kWh/day ÷ 0.8 DoD ≈ 18.8 kWh bank for LFP).

What permits are required for a 5kW shed installation?

Permits commonly include a building or electrical permit, a single-line electrical diagram, and sometimes structural documentation for roof attachments. Grid-tied systems require utility interconnection paperwork. Requirements vary by jurisdiction; consult your local authority having jurisdiction (AHJ) and submit the documents listed on permit checklists.

Can I install a 5kW system on my own?

DIY installation is possible for mechanically competent owners, especially for roof or ground racking and panel mounting. However, most jurisdictions require a licensed electrician for final grid connection and any work that ties into building wiring. Structural engineering may be recommended for older roofs or unusual mounts. Follow local codes and permit conditions closely.

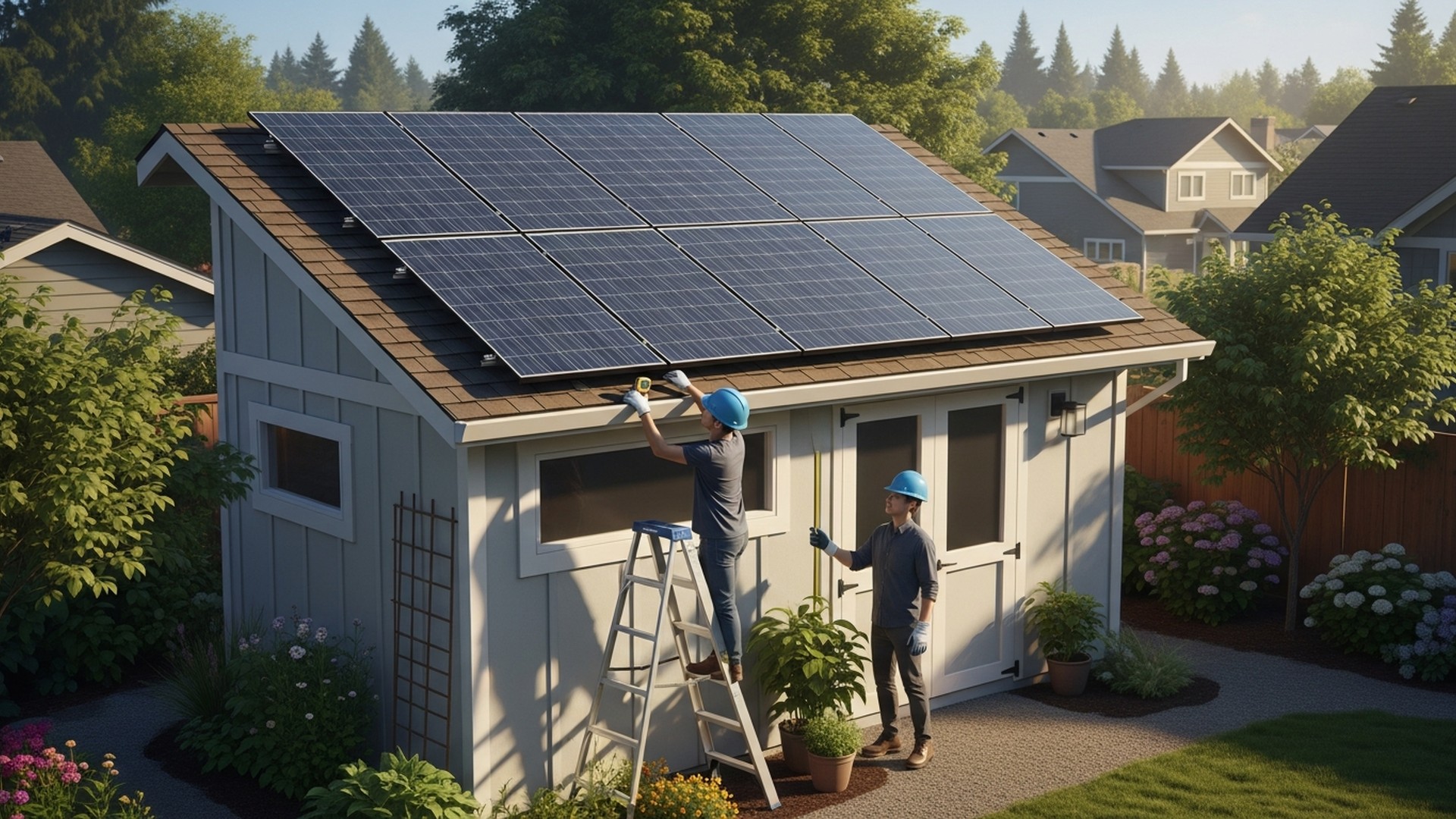

5KW Solar System for Shed: Complete Sizing Guide

Q: How Much Energy Will a 5KW Solar System Produce on a Shed?

A 5 kW nameplate array’s raw daily output equals 5 kW × average sun hours. For simple planning use 2.5–6.0 sun hours per day to cover cloudy to very sunny sites. After real-world derating (inverter losses, soiling, temperature, wiring, shading) expect 10–15% less than the theoretical number. - Quick formula: Daily kWh ≈ Array kW × Sun hours × (1 − system derate). - Examples using 12% derate: - Seattle (~3.2 sun hours): 5 × 3.2 × 0.88 ≈ 14.1 kWh/day → ~5,150 kWh/year. - Denver (~5.0 sun hours): 5 × 5.0 × 0.88 ≈ 22.0 kWh/day → ~8,030 kWh/year. - Phoenix (~6.0 sun hours): 5 × 6.0 × 0.88 ≈ 26.4 kWh/day → ~9,636 kWh/year.

5KW Solar System for Shed: Complete Sizing Guide

Solar System Sizing

Step-by-step guide to sizing a 5kW solar system for a shed — production, components, battery sizing, costs, permits, and installation checklist.

By Graham Mann | Published: 6/14/2026

5KW Solar System for Shed: Complete Sizing Guide A 5kw solar system for shed can power power tools, lighting, small HVAC, and provide reliable backup — if it’s sized and sited correctly. This guide shows how much energy a 5 kW array actually produces, how to match that output to shed loads, what components and mounting options you’ll need, battery sizing math, permit essentials, and a ready-to-use DIY installation checklist. Read on to get precise kWh estimates, parts lists you can shop with, and a practical commissioning timeline. TL;DR: - A 5 kW array typically produces 12.5–30 kWh/day depending on sun hours; expect ~10–15% derate from panels/inverter losses. - For daily needs, size batteries by daily kWh ÷ usable DoD (e.g., 15 kWh/day ÷ 0.8 ≈ 18.8 kWh battery for LFP). - Best DIY setup: ~13 panels at 370–400 W, a 5 kW hybrid inverter (48 V), and 1–3 days of battery autonomy depending on budget. How Much Energy Will a 5KW Solar System Produce on a Shed? A 5 kW nameplate array’s raw d...
