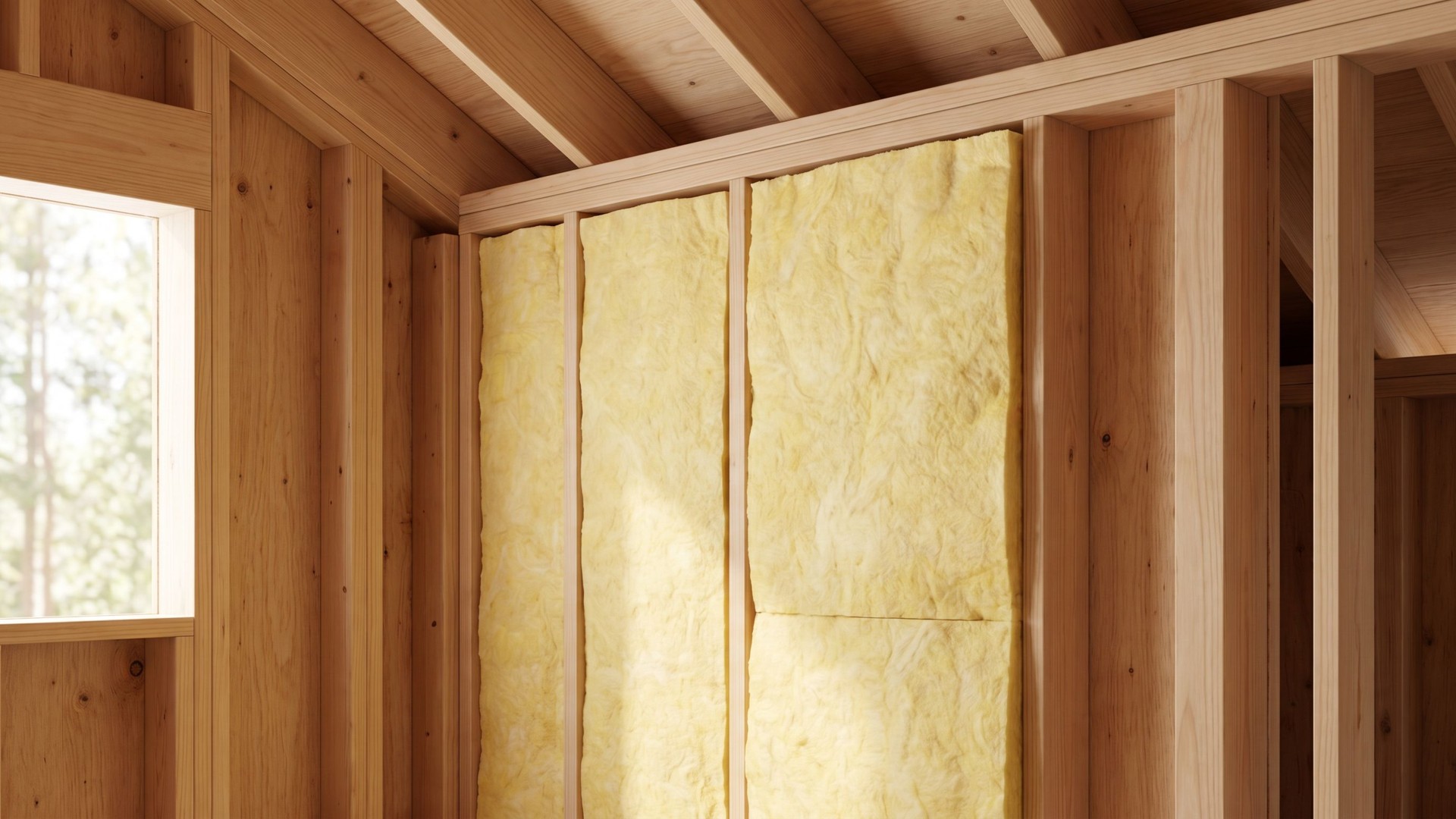

R-13 vs R-23 Insulation: Which Do You Need?

Choosing between R-13 vs R-23 insulation usually comes down to framing depth, climate, and budget. This guide compares 2x4 walls using R-13 batts with 2x6 walls or hybrid assemblies that achieve R-23, explains the trade-offs in cost and thermal performance, and gives practical, DIY-friendly recommendations for tiny homes, cabins, and self-build projects. Readers will learn where R-13 is appropriate, when R-23 or cavity-plus-continuous options are worth the extra framing and material, and which upgrades give the biggest comfort and energy returns.

TL;DR:

• R-13 saves on materials and fits 2x4 walls; choose it for mild climates and budget builds if you pair it with careful air sealing.
• R-23 noticeably reduces heat loss in mixed and cold climates; use 2x6 framing or higher-density batts for new builds where wall depth is flexible.
• Achieve near-R-23 performance without full 2x6 walls by adding 1–2" of continuous exterior insulation (polyiso or mineral wool board) or using blown-in/insulated hybrid assemblies.

R-13 vs R-23 Insulation: Quick Overview and TL;DR

One-paragraph Overview

The phrase "r13 vs r23 insulation" describes two common cavity R-values for framed walls: R-13 is typical for 2x4 stud cavities (about 3.5" depth), while R-23 is a common target for 2x6 cavities (about 5.5" depth) or cavity-plus-continuous combinations. Outside of strict code specifics (check your local authority), the decision affects wall thickness, window jambs, and how much thermal bridging the structure will tolerate. Energy-efficient performance grows nonlinearly with R—doubling the R-value does not halve heat loss—so the right choice balances comfort, upfront cost, and long-term energy savings.

TL;DR Recommendation by Climate Zone

• Mild climates: R-13 in a 2x4 wall plus aggressive air sealing and attic/roof insulation often gives acceptable comfort. See our attic insulation guide to balance wall and roof strategies.
• Mixed climates: Use R-23 in 2x6 walls or R-13 plus 1"–2" continuous exterior insulation to reduce thermal bridging and improve year-round comfort. Also review best attic insulation options.
• Cold climates: Aim for R-23 cavity and additional continuous insulation or alternative high-R assemblies to reduce heating loads and condensation risk; consider blown-in or dense-packed fills and continuous exterior layers.

Energy Star publishes practical R-value guidance for different climates and assemblies; their recommendations can help you verify which R-values are cost-effective for your location: Recommended home insulation r–values - energy star.

Comparison Table: R-13 vs R-23 Insulation — at a Glance

Notes and assumptions:

• Table assumes cavity-only R-values. Adding continuous exterior insulation (CI) increases effective wall R and reduces stud thermal bridging.
• R/inch ranges vary by product and manufacturer—always check manufacturer specs. The Department of Energy explains how insulation reduces heat flow and affects energy use in homes: Insulation | Department of Energy.

R-13 Insulation: What It Is, Strengths, Weaknesses — When R-13 Makes Sense

Overview and Typical Assemblies

R-13 commonly refers to the insulating value achieved in a standard 2x4 stud cavity filled with fiberglass batts, mineral wool, or dense-packed cellulose. The cavity depth is roughly 3.5", and common fiberglass batts deliver about R-2.9–3.7 per inch depending on density and manufacturer. R-13 is often used in walls of small cabins, sheds, tiny homes, and mobile homes where wall thickness and interior floor area are limited.

Strengths (cost, Space Efficiency for 2x4 Walls, Availability)

• Lower material cost and faster installation for new builds and retrofits.
• Fits existing 2x4 framing without changing window/door jamb depths.
• Widely available: fiberglass and mineral wool batts are sold at big-box and local suppliers.
• Appropriate for secondary buildings: garages, sheds, and some mild-climate dwellings; see our best insulation for sheds for specifics.

Weaknesses (lower Thermal Resistance, More Sensitive to Thermal Bridging)

• Lower whole-wall R when studs and plates create thermal bridges. Studs (usually wood at R ~1 per inch of width) reduce effective assembly R significantly.
• Less room to manage condensation and dew point; the dew point can fall inside the sheathing in cold climates, increasing moisture risk unless vapor control is right.
• Retrofit limitations: pushing R-23 into an existing 2x4 wall is difficult without exterior or interior continuous insulation.

Best For: Use Cases and Practical Tips

• Best for mild climates and space-constrained builds where keeping wall thickness and cost down matters. Use R-13 for tiny houses or budget cabins, but pair it with a focused air-sealing strategy and strong attic insulation. For mobile homes and narrow assemblies, review our best insulation for mobile homes and test small-build assumptions with the shed insulation calculator. Practical tips: cut batts to fit tightly around wiring, fill voids like corner studs with additional insulation, and seal the top and bottom plates to reduce convective bypass.

R-23 Insulation: What It Is, Strengths, Weaknesses — When R-23 is Worth It

Overview and Typical Assemblies

R-23 is commonly achieved in a 2x6 wall cavity (5.5" deep) filled with higher-density fiberglass or mineral wool batts, dense-packed cellulose, or by combining a standard cavity fill with continuous exterior insulation. Some high-density batts list R-values near R-4 per inch, allowing R-23 to be reached in a 2x6 cavity. Builders also reach R-23 by pairing cavity fill (R-15 to R-20) with 1" of exterior foam board.

Strengths (higher Thermal Performance, Thicker Cavity Reduces Thermal Bridging)

• Lower heating and cooling loads per square foot compared with R-13 cavity walls; the thicker cavity reduces heat flow through the insulation layer and, relatively, the proportion lost via studs.
• Increased depth gives more room for air sealing details, service runs, and deeper window jambs that improve shading and freeze protection.
• Better fit for main dwelling walls in mixed and cold climates where energy costs and comfort justify the added expense.

Weaknesses (cost, Thicker Walls, Framing/space Trade-offs)

• Higher material and labor cost: a switch to 2x6 studs increases lumber cost and may require changes to sheathing, flashing, and trim details.
• Window and door assemblies may need longer jambs and flashings, which can add to expense and require more careful coordination.
• Retrofit into existing 2x4 walls is usually impractical without exterior or interior insulation upgrades.

Best For: Use Cases and Practical Tips

• Best for mixed to cold climates, primary living spaces, and projects seeking lower long-term heating bills or passive-house level performance. For new builds where wall width isn't constrained, R-23 is a sensible baseline. For retrofit projects, consider cavity-filled plus continuous insulation rather than tearing down walls. In practice, dense-packed cellulose in a 2x6 cavity can reach R-23 while offering good air-sealing and lower embodied-carbon options compared with closed-cell spray foam.

R-13 vs R-23 Insulation: Cost, Thickness and Performance Trade-offs

Material Cost Comparison and Installed Cost Drivers

Installed cost depends on material, labor, access, and whether you add continuous insulation. Major cost drivers:

• Material type (fiberglass batts are cheapest; mineral wool and cellulose moderate; spray foam highest).
• Framing change (moving from 2x4 to 2x6 increases lumber and labor).
• Continuous exterior insulation (adds material and labor but often reduces long-term heating/cooling costs).
• Regional labor rates and supplier pricing. For budget planning, compare batt versus board prices per stud bay and factor in extra time for thicker wall details.

Space, Framing and Structural Implications

• 2x6 framing increases wall depth by about 2", reducing interior floor area slightly but improving insulation capacity and window jamb depth.
• Thicker walls may require longer wall sheathing, different trim, and foundation plate adjustments. For load-bearing walls in 2x4 to 2x6 conversions, verify structural requirements with local codes or an engineer.

Thermal Performance: Heat Loss Math and Percent Savings

Use R-values in series to approximate heat flow: U = 1 / Rtotal, heat loss ∝ U. Example comparison (simplified, cavity-only, per sq ft):

• 2x4 with R-13: Rtotal ≈ 13 → U = 0.0777
• 2x6 with R-23: Rtotal ≈ 23 → U = 0.0435

Relative heat-loss reduction moving from R-13 to R-23 ≈ (0.0777 - 0.0435) / 0.0777 ≈ 44% per square foot of pure insulation layer. But this overstates practical savings because studs, windows, and thermal bridging lower whole-wall effective R. With 16" o.c. studs, whole-wall reductions are typically closer to 20–30% in heating loads for many assemblies. Use our insulation savings calculator to estimate payback and energy savings for your climate and fuel mix.

Comfort, Condensation Risk, and Moisture Control

• Thicker insulation shifts the wall dew point further toward the exterior; that can be good, but without proper vapor and air control it can create trapped moisture. Use appropriate vapor-control strategies for your climate zone and material choice.
• Continuous exterior insulation reduces condensation risk by moving the dew point outboard of the sheathing. For roof and wall CI performance, see our article on exterior roof insulation performance.
• In cold climates, consider a hygrothermal analysis for assemblies with high insulation to avoid moisture problems in sheathing and framing.

Hybrid Options and Upgrades: Getting R-23 Performance Without Full 2x6 Walls

Add Thin Continuous Exterior Insulation (polyiso, Mineral Wool Board)

Adding 1"–2" of continuous insulation (CI) outside a 2x4 wall increases effective R substantially and reduces thermal bridging. Common boards:

• Polyiso: high R/inch (about R-6–6.5 per inch under ideal temperatures), but performance falls with cold temperatures. See polyiso vs eps vs xps for trade-offs.
• Mineral wool board: lower R/inch than polyiso but non-combustible and vapor-open, useful where moisture buffering matters.
• Cork or natural boards: eco-friendly options in small projects; learn where cork fits in our how to use cork for insulation.

A practical hybrid: R-13 cavity + 1" polyiso (~R-6) gives an effective assembly near R-19–R-20, closing much of the gap to R-23 while keeping 2x4 framing.

Double-stud Walls and Retrofit Options

Double-stud or staggered-stud walls create a deep, unbridged cavity that accepts lots of insulation (often cellulose). They deliver high effective R and lower thermal bridging without CI, but they increase wall thickness and construction complexity. For retrofits where exterior foam isn't permitted, a double-stud approach or interior insulated stud bay can be a solution.

Blown-in Cavity Fill + Interior or Exterior Insulation

Dense-packed cellulose or blown-in fiberglass in an existing 2x4 can improve thermal performance and airtightness. Pairing dense-packed fill with 1" of CI or an interior insulated layer (rigid board or insulated drywall) can reach R-23-equivalent assembly performance in many cases.

When to Choose Spray Foam or Mixed Approach

Spray foam provides both R-value and air sealing. Closed-cell foam offers higher R/inch (~R-6–7) and moisture control, but it is the most expensive and has higher embodied carbon. Open-cell foam has lower R/inch and may require an additional vapor control layer in some climates. Compare spray foam to dense-packed cellulose in our spray foam vs cellulose article for airtightness and lifecycle trade-offs.

Short case examples:

• Case 1: Budget tiny house — R-13 cavity with 1" polyiso outside (adds ~R-6) achieves near-R-20 at modest cost.
• Case 2: Retrofit older 2x4 farmhouse — dense-packed cellulose in cavities + 1" mineral wool board outside reduces thermal bridging with minimal interior disruption.
• Case 3: Passive-goal new build — 2x6 cavity filled to R-23 plus 1" CI for better moisture control and lower heating loads.

Internal links for more reading: see the comparisons on polyiso vs eps vs xps and the airflow/carbon trade-offs in spray foam vs cellulose. For natural-material CI, see how to use cork for insulation.

Which Should You Choose? Scenario-based Recommendations for DIY Builders

Mild Climates and Budget Builds

Recommendation: R-13 in 2x4 walls with sharp attention to air sealing, plus an insulated attic. This keeps costs and wall thickness down. Use good-quality batts or dense-packed cellulose where possible, and seal top plates, rim joists, and penetrations. Cross-link: see the attic insulation guide to balance attic R with wall choices.

Mixed Climates and General-purpose Self-builds

Recommendation: Aim for R-23 or R-13 plus 1"–2" CI. The added CI reduces thermal bridging and often delivers more comfort per dollar than thicker cavity-only approaches. Consider dense-packed cellulose in a 2x6 or R-13 with 1.5" polyiso outside as a compromise.

Cold Climates, Passive-house Goals, and Long-term Investment

Recommendation: Use a cavity-plus-continuous approach: 2x6 cavity (R-23) plus 1"+ CI or double-stud walls with dense-packed cellulose. Prioritize airtightness, balanced ventilation (ERV/HRV), and hygrothermal detailing. These choices reduce heat load and allow smaller heating systems.

Retrofit vs New-build Decision Flow

• Evaluate climate zone and local code minimums.
• Measure existing wall depth and check for existing insulation and moisture issues.
• Decide if framing change is feasible; if not, plan for CI or interior insulating strategies.
• Compare incremental costs of upgrading insulation versus investing in renewables—our article on hybrid energy systems cost helps weigh that trade-off.
• Finalize the decision with an energy-savings estimate using the insulation savings calculator.

Watch this step-by-step guide on choosing the best insulation for your home:

If building a cabin or a full self-build, our guides on how to build a small cabin and how to build your own home explain how wall insulation decisions fit into whole-house planning.

Installation Tips and Common Mistakes When Choosing Between R-13 and R-23

Quality of Installation Beats Nominal R-value

• Fit batts snugly: Cut and compress as needed to avoid gaps; compressed batts lose R.
• Fill voids: Pay attention to wiring, plumbing chases, and corners. Use backer rod or cut pieces to fill odd spaces.
• Verify with a blower door: For serious efficiency goals, a blower-door test before drywall reveals major leaks you can fix.

Avoiding Compression, Gaps and Thermal Bridges

• Do not compress batts: Compression reduces rated R; where depth is limited, consider higher-density or blown-in insulation.
• Maintain full cavity coverage: Overlapping or leaving small gaps creates convective bypass.
• Address stud thermal bridging: Install 1" of CI or use resilient channels where appropriate to break thermal paths.

Air-sealing Checklist and Blower-door Considerations

• Seal top and bottom plates: Use sealant and gaskets at plates and sheathing junctions.
• Seal around penetrations: Use closed-cell spray foam or canned foam for electrical boxes and plumbing penetrations.
• Rim-joist attention: Rim joists are common leakage areas—install continuous foam or spray foam and seal with tape or sealant.
• Tool list: Utility knife, insulation supports, caulk, low-expansion foam, spray adhesive, blower-door rental or hire.

Link to more detailed practices in our air sealing tips and a list of often-missed spots in common air leakage points. When the assembly or air barrier strategy is complex (vented rainscreens, CI details, or multiple membrane layers), consider hiring a qualified builder or building scientist for the detailing stage.

The Bottom Line

R-13 fits budget and space-limited projects and is acceptable in mild climates when paired with strong air sealing and attic insulation. For mixed and cold climates, R-23 or R-13 plus 1"–2" of continuous insulation gives much better year-round performance and moisture resilience. Choose the approach that balances framing, budget, and long-term heating fuel costs — and remember to evaluate whole-house strategies rather than walls in isolation.
