Is R-23 worth it over R-21?

It depends on climate and goals. In IECC zones 6–8 or when targeting Passive House, R-23 or higher often makes economic and comfort sense. In milder climates, the incremental energy savings are smaller and may not justify the extra material and detailing costs. A whole-wall evaluation that accounts for studs, thermal bridging, and airtightness will show the actual benefit more accurately than a cavity-only comparison.

Can I convert an R-21 wall to R-23 during a retrofit?

Yes. Common retrofit strategies are adding continuous exterior insulation (1"–2") or removing interior finishes to densify cavities and install higher-density insulation. Adding exterior foam is often the least disruptive route, but it requires careful flashing and window trimming. See the exterior foam and vapor barrier sections above for the required detailing steps.

Does adding 1 inch of exterior foam equal R-2?

Not always. Polyiso has a nominal R of roughly R-5–R-6 per inch at room temperature but performance varies with temperature and product. XPS is closer to R-4–R-5 per inch. Rather than assuming a fixed equivalence, check the manufacturer's published R/inch and factor in whole-wall effects; continuous foam also reduces stud thermal bridging, which increases effective performance beyond just the foam's R-value.

Which insulation types reliably achieve R-23 in a 2x6 wall?

Options include high-density mineral wool or fiberglass batts made for 2x6 cavities, a standard cavity batt plus thin continuous exterior foam, or closed-cell spray foam applied to the full cavity. Availability varies by market: high-density batts may be specialty items, while exterior foam is widely available but requires detailing work. Use whole-wall calculations to verify your chosen assembly reaches the desired performance.

How does air sealing change my choice between R-21 and R-23?

Air sealing often delivers bigger comfort and energy improvements than small increases in cavity R. A leaky R-23 wall can perform worse than a well-sealed R-21 wall. For DIYers, investing time in gaskets, caulked top plates, sealed penetrations, and a continuous air barrier is typically more cost-effective than upgrading cavity R alone. For tools and methods, see the air-sealing tools resource and test with a blower door if feasible. For broader context on attic vs wall priorities, consult our attic insulation guide.

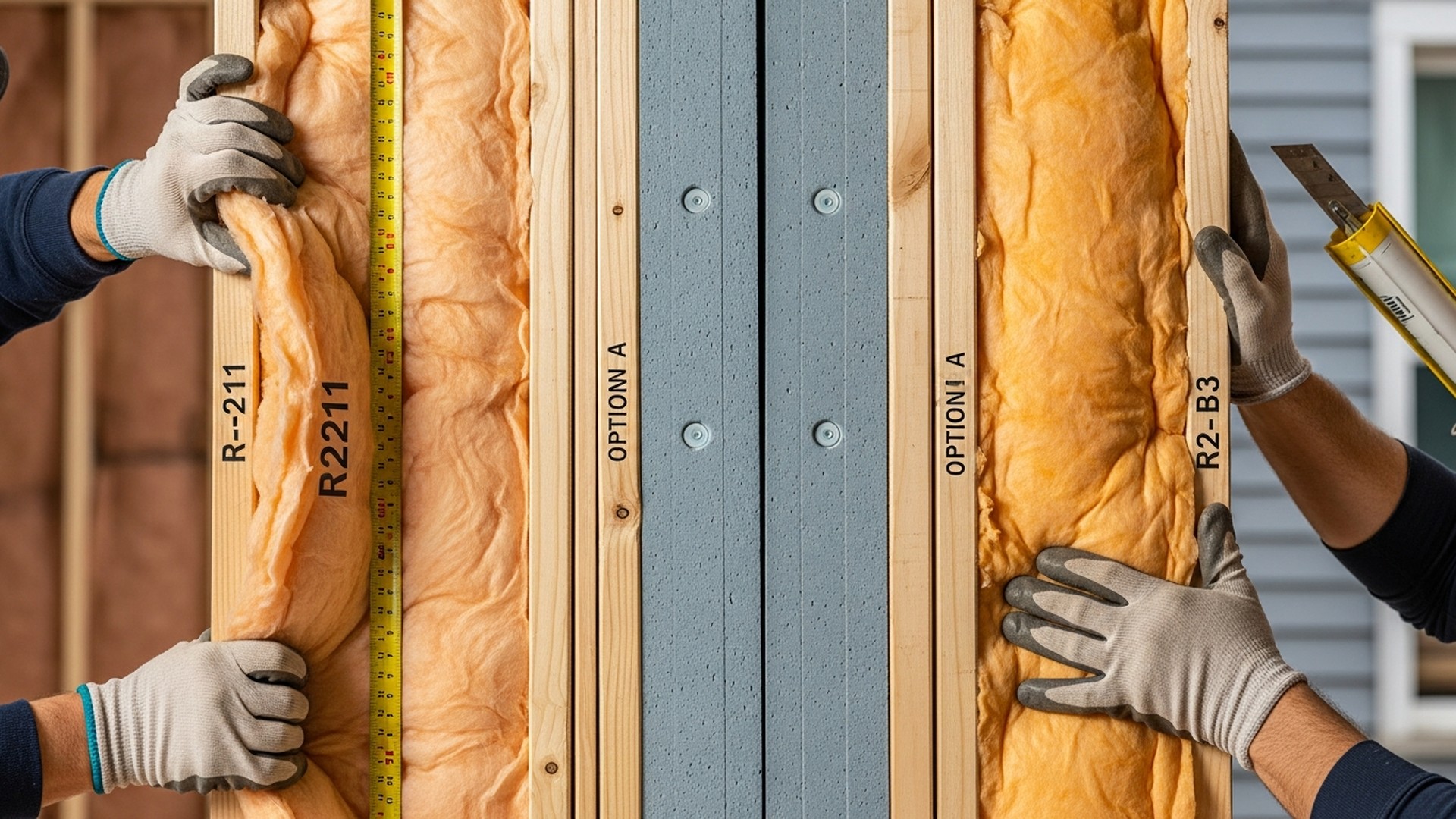

R-21 vs R-23 Insulation: Which Do You Need?

R-Value Comparisons

Clear, practical guidance to choose between R-21 and R-23 for walls and assemblies — performance, cost, and when an alternative makes more sense.

By Graham Mann | Published: 6/21/2026

R-21 vs R-23 Insulation: Which Do You Need? Choosing between R-21 and R-23 insulation is a common decision for DIY homebuilders planning 2x6 walls or retrofits. This article compares the two ratings, explains how each is achieved in real assemblies, and gives practical, scenario-based recommendations so you can decide whether to stick with standard R-21 batts or invest in R-23-level performance using denser batts, exterior foam, or higher-performance materials. If your goal is lower heating bills, better comfort, or meeting a specific code or passive-house target, this guide walks through performance, cost, installation, and workable alternatives. For external source context, review Types of Insulation | Department of Energy. TL;DR: - R-21 is sufficient for most 2x6 framed walls in moderate climates and delivers ~90–95% of the thermal benefit of R-23 at lower cost. - Choose R-23 when building for cold climate zones, pursuing passive-house targets, or when you cannot deepen cavities; R-...
