How much thicker is a double stud wall compared to 2x6?

A typical double stud wall runs about 10–14 inches thick overall, compared with a 2x6 stud wall that ends up around 6.5–8 inches finished. The exact difference depends on whether inner and outer studs are 2x4 or 2x6, the thickness of the interior and exterior finishes, and any exterior continuous insulation or rainscreen. Thicker walls reduce usable floor area and change window jamb detailing, so factor that into layout decisions.

Can I get passive-house level R-values with a 2x6 wall?

Yes, but not with cavity-only insulation. To approach passive-house insulation levels using a 2x6 structure you generally need substantial exterior continuous insulation (several inches of high-performance board) or a hybrid offset system like a Larsen truss. Airtightness and mechanical ventilation design matter as much as raw R-value when pursuing passive-house performance; consult the passive house ventilation guidance for required ventilation strategies.

Is double stud better than exterior continuous insulation?

Neither is categorically better—each has trade-offs. Double stud walls reduce thermal bridging and can use lower-embodied insulation (cellulose) to reach high R-values, but they are thicker and more labor-intensive. Exterior CI applied to a 2x6 wall reduces bridging and keeps interiors compact. Choose double stud when wall depth is acceptable and you want maximum cavity R; choose 2x6 + CI where lot width, cost, or build speed are priorities.

What insulation type works best in double stud walls?

Dense-packed cellulose and mineral wool are common choices. Cellulose is cost-effective and has low embodied carbon, while mineral wool is noncombustible and performs well with moisture. Closed-cell spray foam offers high R-per-inch and air-sealing but has higher embodied energy and long-term considerations; many builders prefer cellulose for deep cavities. See the detailed comparison in our insulation comparison for more on performance and embodied impacts.

Do double stud walls increase moisture risk?

Double stud walls can increase moisture risk if not detailed for drying and vapor control. The thicker cavity and use of hygroscopic insulation like cellulose mean assemblies must have a clear drying path and properly placed vapor retarders or smart membranes. Exterior rainscreens, vapor-permeable sheathing, and careful flashing reduce risk. For foundational moisture interactions and site drainage that affect wall performance, consult guides like fix damp crawl space and coordinate with the foundation plan in the framing guide.

2x6 Wall vs Double Stud Wall: Cost and Performance

Wall Assemblies & Framing

Compare 2x6 and double-stud walls for cost, thermal performance, airtightness, and best-use cases for DIY eco homebuilders.

By Graham Mann | Published: 5/19/2026

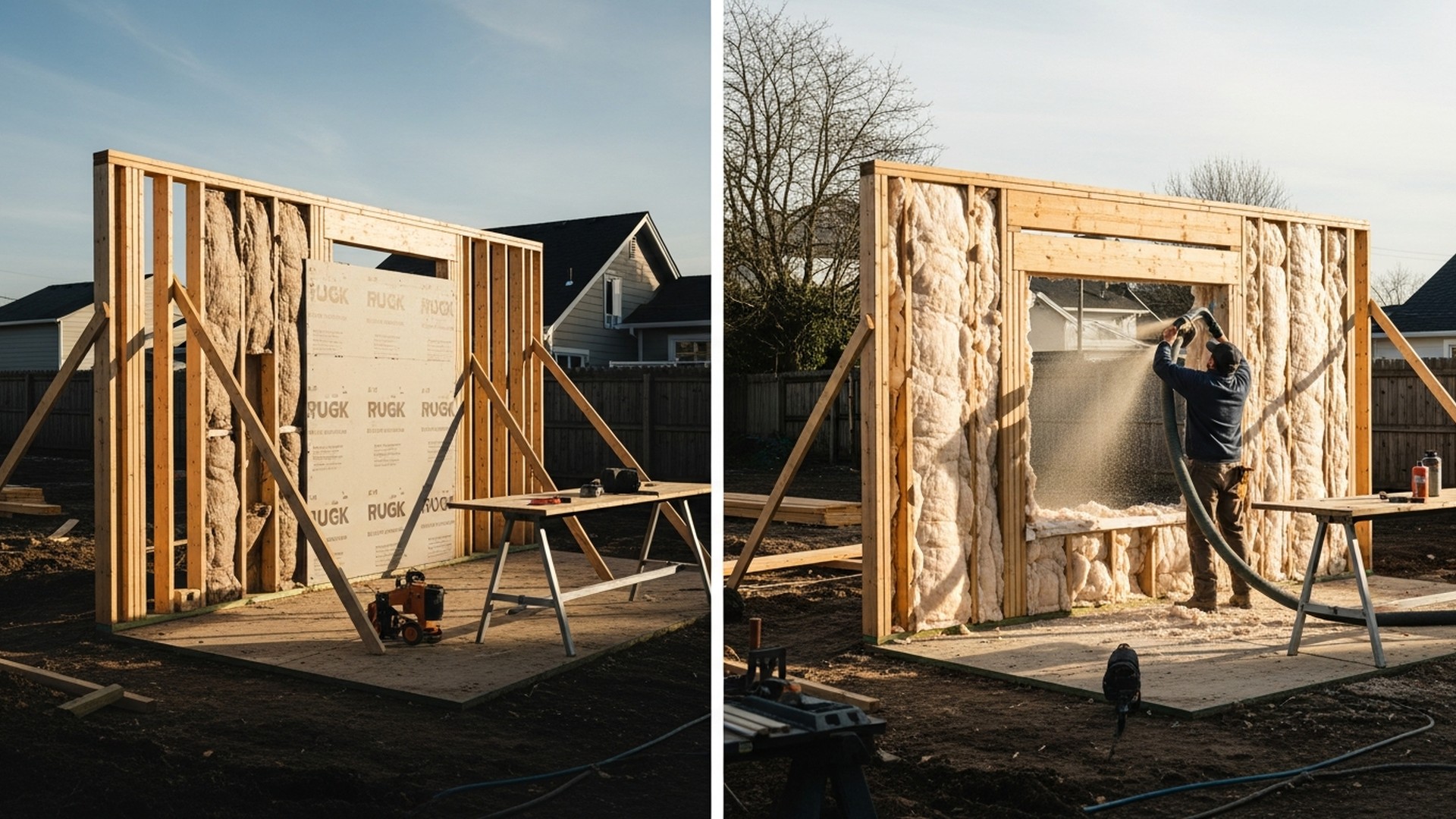

2x6 Wall vs Double Stud Wall: Cost and Performance A common decision for DIY eco homebuilders is whether to build a conventional 2x6 framed wall or a double stud wall. This article compares "2x6 wall vs double stud wall" directly, showing what each assembly costs in materials and labor, how they perform thermally and with airtightness, moisture-control risks, and which choice fits common self-build scenarios. Readers will get practical R-value ranges, trade-offs for continuous exterior insulation, and clear recommendations for budget builds, passive-house targets, and tight lots. TL;DR: - 2x6 walls: typical cavity R-value R-13–R-23 (cavity-only), moderate material cost, fast to build; add 1–2" continuous exterior insulation to reduce thermal bridging and reach higher whole-wall R-values. - Double stud walls: effective installed R-value R-30–R-45+ with dense-packed cellulose, much lower thermal bridging but thicker and costlier to frame and detail; best where wall depth is acceptable an...
